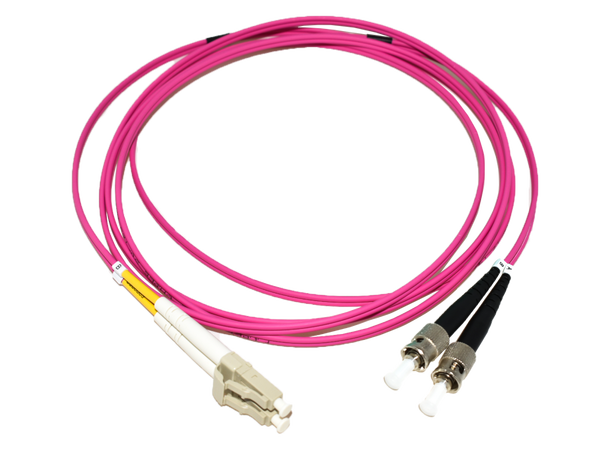

LinkIT fiber patch OM4 LC/ST Magenta
Duplex | MM | LSZH
LinkIT fiber cord OM4 is an optimized 50 multm multimode fiber cable for 10 Gbps up to 100 Gbps data transmission: 10 Gbps up to 550 m, or 100 Gbps up to 125 m
- OM4 Duplex cable
- Multimode
- LSZH
- Magenta
Main Specifications
| Length (m) | |
|---|
| Color | Magenta |
|---|
| Category | OM4 |
|---|
| Brand | LinkIT |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | ST |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 50/125 Multimode |
|---|
| Polishing contact 2 | UPC |
|---|
| Wave length (nm) | 850/1300 |
|---|
Extended Specifications
| Maximum bend (mm) | 20 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Cable Diameter (mm) | 2 |
|---|
| Certifications | CE, RoHS |
|---|
| Insertion Loss (dB) | < 0.3 dB |
|---|
| Operating Temperature | -40ºC ~ +75ºC |
|---|
| Storage Temperature | -40ºC ~ +75ºC |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
| Bending radius (mm) | 20mm |
|---|
| Tensile loads (N) | 150 |
|---|
