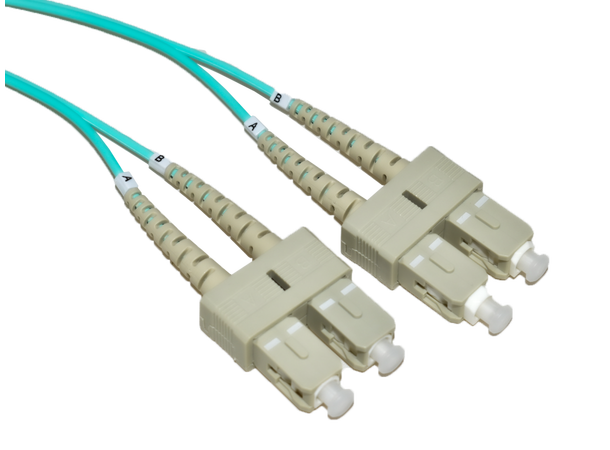

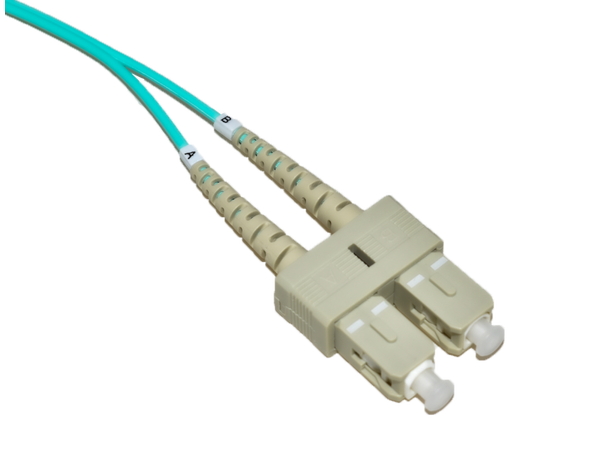

LinkIT fiber patch OM3 SC/SC Aqua m
Duplex | MM | LSZH
The OM3 Duplex cable is a multimode fiber optic cable with a core diameter of 50 µm, designed for high-speed data communication. The cable is halogen-free (LSZH) to minimize toxic emissions in case of fire. It is aqua-colored for easy identification and is suitable for use in both short and medium-range distances in modern network environments.
- OM3 Duplex cable
- Multimode
- Aqua
- Halogen-free (LSZH)
Main Specifications
| Brand | LinkIT |
|---|
| Length (m) | |
|---|
| Category | OM3 |
|---|
| Connector type 1 | SC |
|---|
| Connector type 2 | SC |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Wave length (nm) | 850/1300nm |
|---|
| Core Diameter (um) | 50/125 – Multimode |
|---|
Extended Specifications
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Optical Return Loss (dB) | 0.3 dB |
|---|
| Insertion Loss (dB) | 35dB |
|---|
| Operating Temperature | -40ºC ~ +75ºC |
|---|
| Storage Temperature | -40ºC ~ +75ºC |
|---|
| Cable Diameter (mm) | 2 |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
| Halogenfree | Yes |
|---|
| Fire retardant version | Yes |
|---|
| Bending radius (mm) | 20mm |
|---|
| Tensile loads (N) | 150N |
|---|
| Certifications | CE, RoHS |
|---|
