LinkIT fiber patch OS2 LC/LC
Duplex | SM | LSZH | Green

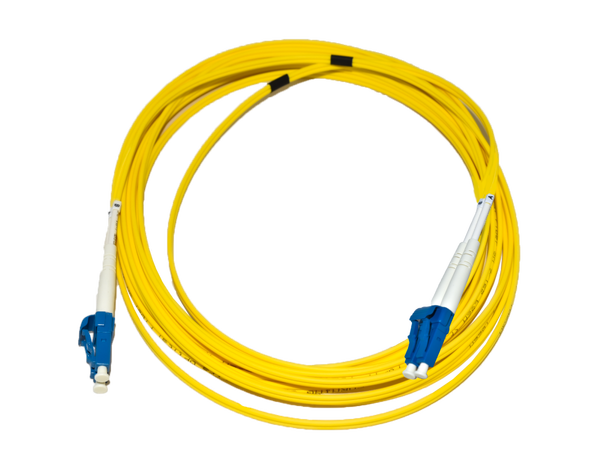

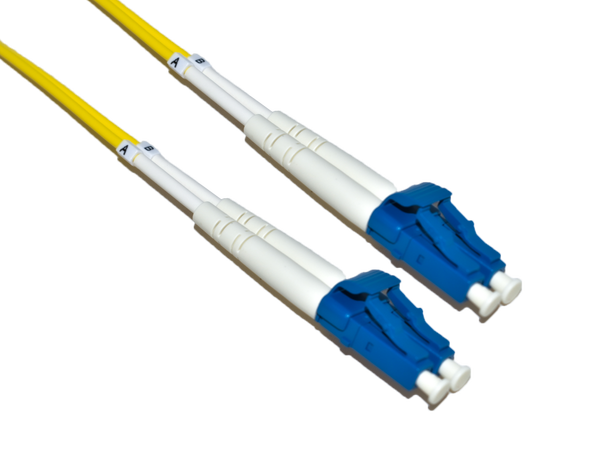

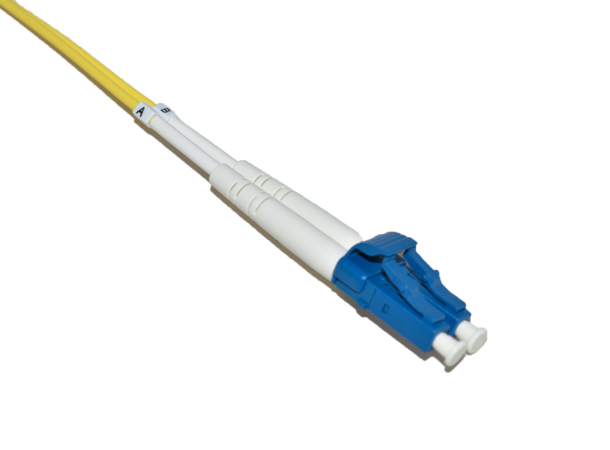

This OS2 Duplex fiber optic cable is available in various colors and lengths, featuring LC connectors with UPC polishing on both ends. Designed for singlemode applications with a 9/125 µm core diameter, it supports wavelengths of 1310/1550 nm. The cable offers low insertion loss of =0.3 dB and an optical return loss of =55 dB. With a 2mm diameter, the cable is jacketed in LSZH material, providing fire-retardant and halogen-free properties in compliance with IEC safety standards. It withstands temperatures from -40º to +75ºC, has a bending radius of 20mm, and a tensile load capacity of 150N. Certified to CE and RoHS standards.
- OS2 (Single Mode) 9/125
- LC/UPS - LC/UPC Duplex
- Halogen-free (LSZH)
- G657A cable for less loss with small bend diameter
Main Specifications
| Brand | LinkIT |
|---|
| Color | Green |
|---|
| Length | |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | LC |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Wave length (nm) | 1310/1550nm |
|---|
| Core Diameter (um) | 9/125 Singlemode |
|---|
Extended Specifications
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Optical Return Loss (dB) | < 55 dB |
|---|
| Insertion Loss (dB) | =0.3 dB |
|---|
| Operating Temperature | -40º ~ +75ºC |
|---|
| Storage Temperature | -40º ~ +75ºC |
|---|
| Cable Diameter (mm) | 2 |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
| Halogenfree | Yes |
|---|
| Fire retardant version | Yes |
|---|
| Bending radius (mm) | 20mm |
|---|
| Tensile loads (N) | 150N |
|---|
| Certifications | CE, RoHS |
|---|
