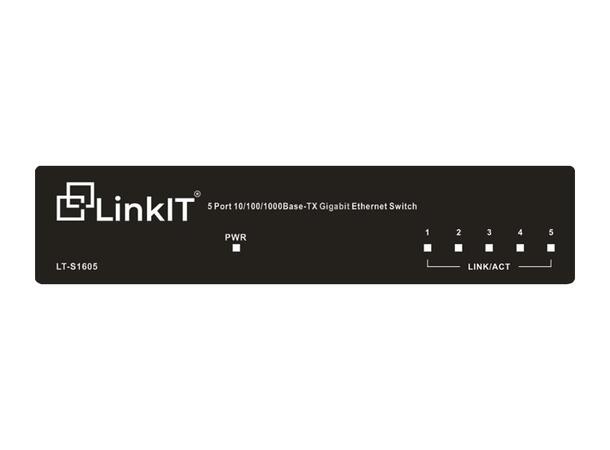

LinkIT S1605 Unmanaged Switch 5-Port
5x10/100/1000
LinkIT Unmanaged 5 port Switch
- Fanless desktop model
- High back-plane bandwidth 10Gbps
- Plug and play, no configuration required
- Provides 5 10/100/1000Base-TX ports
- 4K MAC address table
Small with powerful 10/100/1000 Mbps switch with full 10Gbps working speed. The switch is configuration-free. Surge protection on all gates.
Main Specifications
| Color | Black |
|---|
| Brand | LinkIT |
|---|
| Measurements (WxHxD) | 25 x 69 x 92 mm |
|---|
| Network port | 5 x 10/100/1000 |
|---|
| Transfer rate | 1000Mbps full Duplex,100or 1000Mbps Half Duplex |
|---|
| Network protocol | IEEE 802.3, IEEE 802.3AB, IEEE 802.3U, IEEE 802.3Z |
|---|
| Managed Switch | No |
|---|
| Unmanaged Switch | Yes |
|---|
Extended Specifications
| Operating Humidity | 5%~ 95%,Non-condensing |
|---|
| Operating Temperature | 0°~40°C |
|---|
| Number of ports | 5 |
|---|
| Network Delay | 1000 to 1000M bps: maximum 20 µ (using 64 byte packet) |
|---|
| Frame filtering and transmission rate | 10M port maximum 14,800pps
100M port maximum 148,800pps
1000M port maximum 148,8800pps |
|---|
| |
|---|
| Certifications | CCC, CE, FCC, RoHS |
|---|
