LinkIT Cat.7A S/FTP Installation cable LSZH 100m
AWG 23/1 | White | 1000MHz

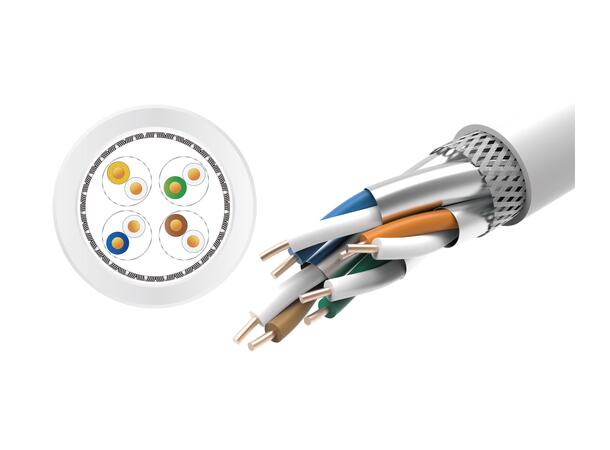

Halogen-free (LSZH) and shielded Cat.7a cable with foil shield around each pair, and braided metal shield around the pairs. Can handle a mimimum of 1000 MHz band width. Specifically designed for open installation, the cable is white in color, with meter indicator. Due to a solid sheath, the cable can also be stapled to the wall with staples. Fire class Dca s2, d2, a1. The cable is certified according to the new CPR directive
- Specifically designed for open installation
- Due to a solid sheath, the cable can also be stapled to the wall with staples.
- Certified according to the new CPR directive
- Can handle a mimimum of 1000 MHz band width
- Fire class Dca s2, d2, a1
Main Specifications
| Length (m) | 100 |
|---|
| Cable type | S/FTP |
|---|
| Color | White |
|---|
| Category | Cat.7a |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | S/FTP – braided shielding/foiled twisted pairs |
|---|
Extended Specifications
| AWG wire size | 23 |
|---|
| Transmission speed | 10Gbps |
|---|
| Frequency (Mhz) | 600 |
|---|
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Inner cape | LSZH |
|---|
| Conductor diameter | 0,56mm |
|---|
| Outer Cape diameter | 7,6mm |
|---|
| Halogenfree | Yes |
|---|
| Core color 1 | Blue, White |
|---|
| Core color 2 | White, Orange |
|---|
| Core color 3 | Green, White |
|---|
| Core Color 4 | Brown, White |
|---|
| EAN | 7072662021276 |
|---|
| Certifications | CE, REACH, RoHS |
|---|
| Cable fire class | Dca s2, d2, ai |
|---|
| Segregation Class | C |
|---|
