LinkIT QSFP+ 40Gbps SR4 150m Juniper4 x 10Gbps, 850nm, MPO/MTP-12

PRODUCT FEATURES

Multi rate capability: 1.06Gb/s to 10.5Gb/s per channel
Reliable VCSEL array technology
Maximum link length of 100m on OM3
Multimode Fiber(MMF) and 150m on OM4 MMF
Hot-pluggable QSFP+ footprint
Single 1x12 MPO receptacle
Maximum power dissipation<1W
Four-channel full-duplex transceiver module
RoHS-6 compliant and lead-free
Support Digital Diagnostic Monitor interface
Un retimed XLPPI electrical interface
Case operating temperature Commercial: 0°C to +70°C

Applications:

40GBASE-SR4 40G Ethernet
Breakout to10GBASE-SR Ethernet
Proprietary interconnections

- Lik Juniper EX-QSFP-40GE-SR4

LinkIT QSFP+ 40Gbps SR4 150m Juniper 4 x 10Gbps, 850nm, MPO/MTP-12

Tilbehør

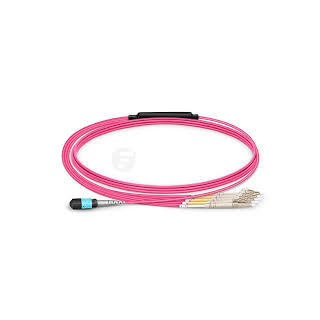

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 5m VerB MTP Elite 1,2,3,4 - 9,10,11,12 LSZH

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 5m

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 3m VerB MTP Elite 1,2,3,4 - 9,10,11,12 LSZH

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 3m

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 30m VerB MTP Elite 1,2,3,4 - 9,10,11,12 LSZH

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 30m

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 1m VerB MTP Elite 1,2,3,4 - 9,10,11,12 LSZH

LinkIT QSFP+/MPO-B OM4 8xLC Magenta 1m
