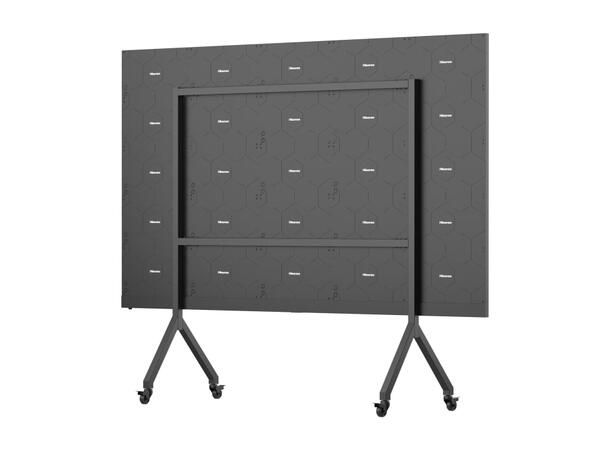

Mobile Cart is optional

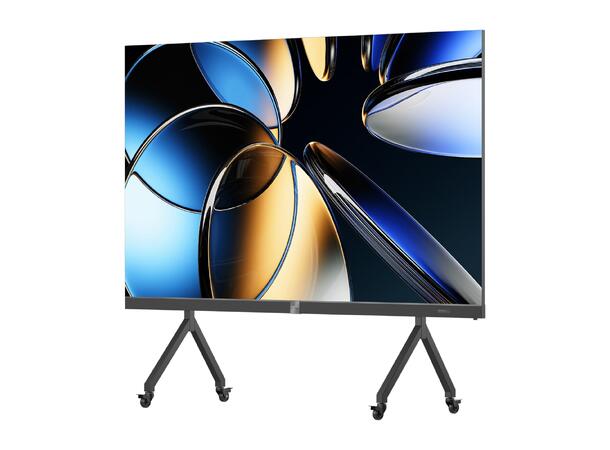

HAIO136GE136” LED All-in-one Display
Hisense LED all-in-one redefines executive audiovisual solutions by delivering cinema-grade imagery with true-to-life color dynamics and immersive surround sound. Its streamlined design integrates seamlessly into sophisticated spaces, while wireless collaboration tools and cloud management simplify operations. Experience effortless deployment, significant operational cost savings, and transformative boardroom impact—the preferred choice for high-end business.
Physical
Pixel Pitch: 1.5625 mm
Pixel Configuration: Flip-Chip COB (1 Red, 1 Green, 1 Blue)
Screen Resolution (W x H): 1,920 x 1,080
Module Dimensions (W x H): 150 x 337.5 mm / 5.9 x 13.3 inch
No. of Modules Per Screen (W x H): 20 x 5 (Total 100 Pcs LED Modules)
Screen Dimensions (W x H x D) (With Screen Frame): 3,004 x 1,774.5 x 32.3 mm / 118.3 x 69.9 x 1.27 inch
Product Dimensions (With Mobile Cart): 3,004 x 2,439.5 x 911.3 mm / 118.3 x 96.04 x 35.88 inch
Panel/Cabinet Dimensions (W x H x D): 600 x 337.5 x 32.3mm / 23.6 x 13.3 x 1.27 inch
Weight (per panel / screen): 4 kg / 110 kg // 8.82 lbs / 242.55 lbs
Pixel Density: 409,600 pixels/m2
Flatness of Cabinet (mm / inch): ± 0.05 mm
Cabinet Material: Die-cast Aluminium
Grey Level: 14 bits
Colour Gamut: >113% DCI-P3
Aspect Ratio: 16:9
Service Access: Front
Optical
Brightness (max./peak.) (steady-state peak / instantaneous peak): 1,000 nits // 1,400 / 2,100 nits
Brightness - Default (Adjustable): 600 (100 - 1,000) nits
Contrast Ratio: 52,000: 1@10lux
Visual Viewing Angle (H x V): 165° x 150°
Brightness Uniformity: 98%
Color Uniformity: + 0.003 Cx, Cy
Processing Depth: 14 bits
Color Temperature - Default (Adjustable): 6,500 K (2,000 ~ 9,300 K)
Electrical
Power Supply Voltage: 220 - 240 V, 50/60 Hz
Average Power Consumption (W/Screen): =850@1,000nits / =750@600nits
Max Power Consumption (W/Screen): =1,720@1,000nits / =1,250@600nits
Refresh Rate: 3,840 Hz (typ.)
WiFi: 2.4G & 5G
Bluetooth: 5.2
Input:
- HDMI(2.0) IN x3 (internal), HDMI IN1 supports eARC
- USB2.0 x1 (internal)
- USB3.0 x2 (front)
- Type-C (not full function) x1 (front)
- RS232 x1 (internal)
- LAN x1 (internal)
- OPS slot x1 (rear)
Output:
- HDMI(2.0) LOOP x1 (internal), HDMI IN2 signal compatible
- SPDIF x1
- Audio Out w/o
Operation Conditions
Operating Temp/Humidity: 0 - 40°C / 10% - 90%RH (no frost)
Storage Temp/Humidity: -20 - 40°C / 10% - 65%RH (no frost)
Expected LED Lifetime (typ): 100,000 Hrs
Speaker
Built-in: 10W x 6
System
OS: Android 14
CPU: Quad-core Cortex-A73 1.8GHz 64-bit
GPU: Mali-G57 MC1
DDR: 8GB
ROM: 128GB
Language: Chinese / English (Default) / French / German / Spanish / Italian / Polish / Arabic / Russian
Package Solution 1
Packing Method: Flight case for Cabinets / Modules / Wall Bracket and Accessory
Packaging Dimensions (WxHxD): 1,005 x 2,055 x 765 mm 39.56 x 80.90 x 30.12 inch
Net / Gross Weight (w Wall Bracket): 110kg / 200kg // 242.50lbs / 440.92lbs
Mobile Cart (Optional)
Packaging Method: Wooden Box (For Mobile Cart) (Option)
Packaging Dimensions (WxHxD): 2,090 x 335 x 960 mm 82.28 x 13.19 x 37.8 inch
Net / Gross Weight: 38.7kg / 80kg // 85.32 lbs / 176.37 lbs
Miscellaneous
Curve Support (-:concave +:convex): Flat, Flat
Controller: Embedded
Standard Accessory: User Manual / Remote Control / Battery / Vacuum Tool / Wall Bracket
Optional Accessory: Mobile Cart (LGT60401D) / Hisense Dongle (HT008E) / OPS (S02EMS5C821C)
Certification: CE, CB, EAC
Available Regions
EU
APAC
SA
