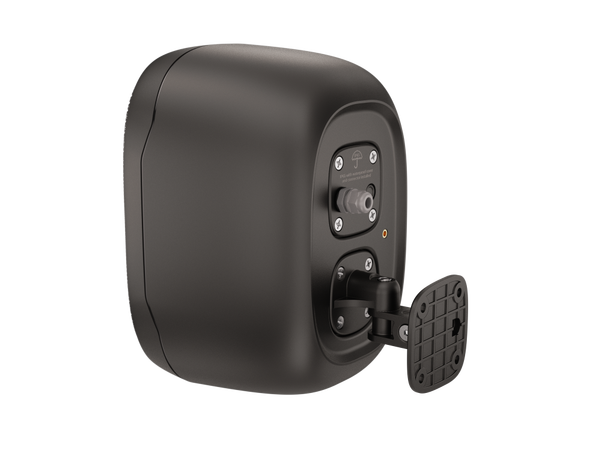

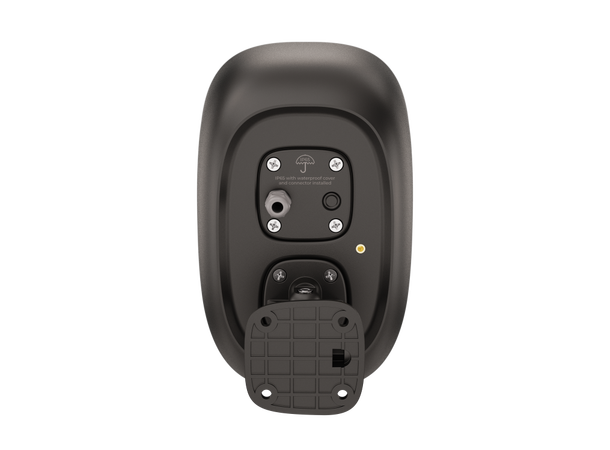

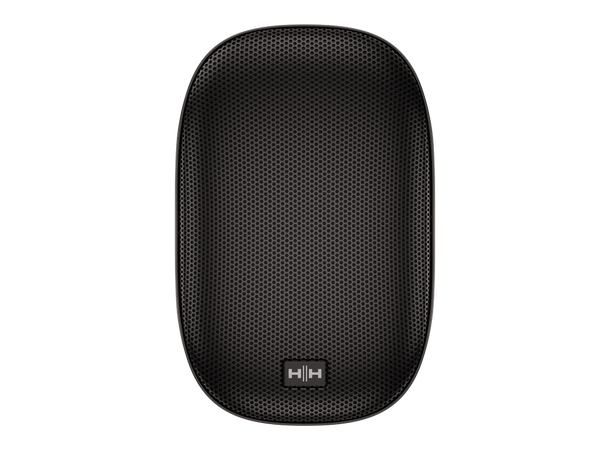

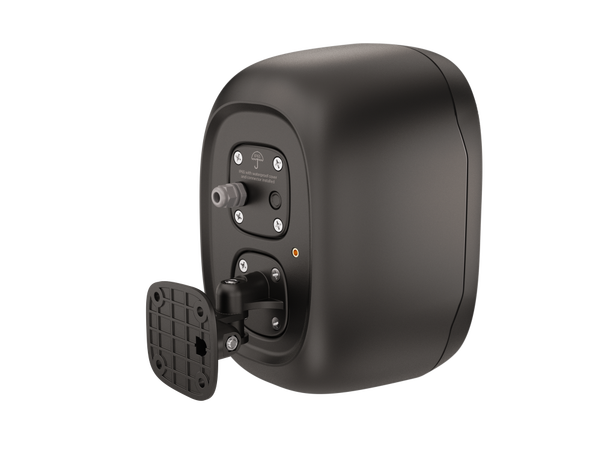

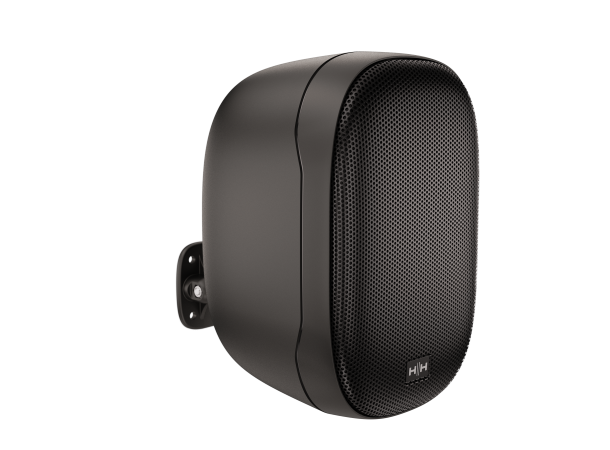

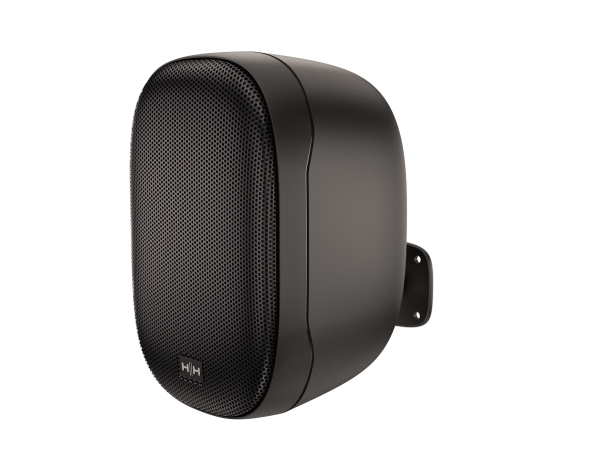

HH Speaker Tessen TNi-W6-BK Black

6,5+1" 40W@100V 55W@8 Ohm

Varunummer: 140034
Alt. varunr: TNi-WX5-BK
Skicka ett mail till mig när varan finns i lager
BeskrivningTeknisk infoExtern Info
Beskrivning

HH Speaker Tessen TNi-WX5-BK Black

5,25+0,75" 15W@100V 50W@8 Ohm



The TNi-WX5 is a 2-way passive design featuring a 5.25-inch low-frequency driver and a 0.75-inch high-frequency driver that provide a beautifully balanced, natural and dynamic listening experience, with excellent speech intelligibility and exceptional detail for background music applications. With a sensitivity of 87dB (1W/1m) and a power handling of 50W RMS, the TNi-WX5 yields a max SPL of 103dB and is well suited to commercial spaces, hospitality venues, retail locations and outdoor environments.

The TNi-WX5 is designed for flexibility, suitable for Lo-Z systems with a nominal system impedance of 8 Ohms, and an internal line transformer with tappings from 15W down to 2.5W, expanding the potential applications to include large-scale 70V/100V audio systems.

The TNi-WX5 is built for durability when used in both indoor and outdoor applications, featuring a cabinet constructed from UV-resistant ABS, an aluminium grille and a rear cable gland panel. These features combine to achieve an IP rating of IP65, making this an ideal weather-resistant audio solution.

The compact form factor (256 x 166 x 163mm), lightweight design (2.3kg) and included pan & tilt wall bracket all contribute to a fast and simple installation.


100V Power Options15W, 10W, 7,5W, 5W
70V Power Options7,5W, 5W, 3,75W, 2.5W
Frequency Response 75Hz - 20KHz
IP RatingIP65
LF Driver5.25-inch
HF Driver0,75-inch
Low Nominal System Impedance8 OHM
Power50W RMS, 200W Peak
Max SPL (1M) (Peak)103 dB SPL 110dB (Peak)
Sensitivity (1W/1M)87 DB SPL
Recommended Amplifer100-200W @ 8 Ohms
Horiz. Dispersion Angle120°
Vertical Dispersion Angle100°
Input ConnectorEUROBLOCK/PHOENIX
Link ConnectorEUROBLOCK/PHOENIX
Mounting BracketPan/Tilt wall bracket included
Unit Dimensions (Hwd)256 X 166 X 163MM
Unit Weight2.3KG
Main Construction MaterialABS PLASTIC
GrilleBlack, Aluminium
FinishBlack
Teknisk info

Produktinformasjon

Storlek 5,25"
