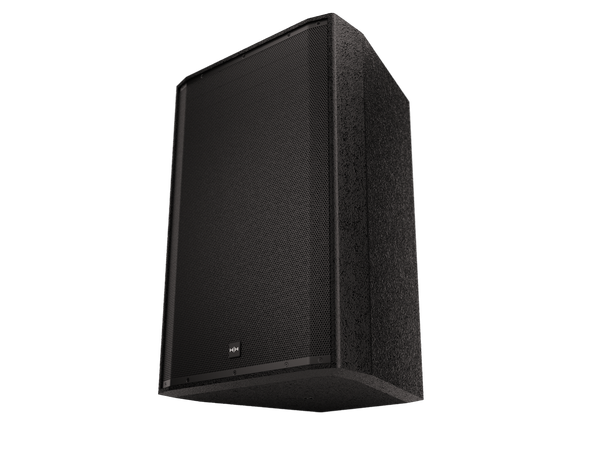

HH Speaker Tessen TNI-W15PRO-BK Black
15"+1,75" 450W AES Konti 900W 8 Ohm

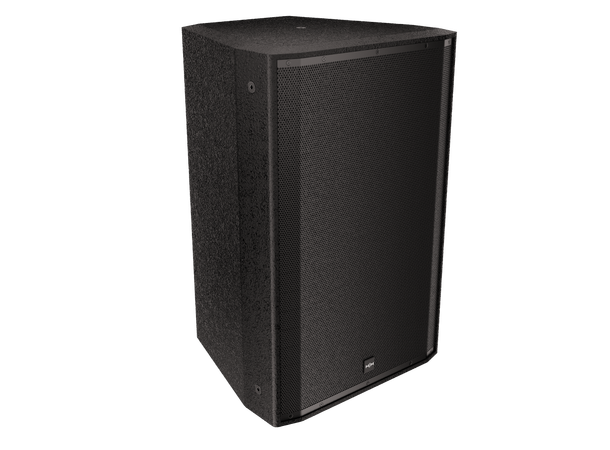

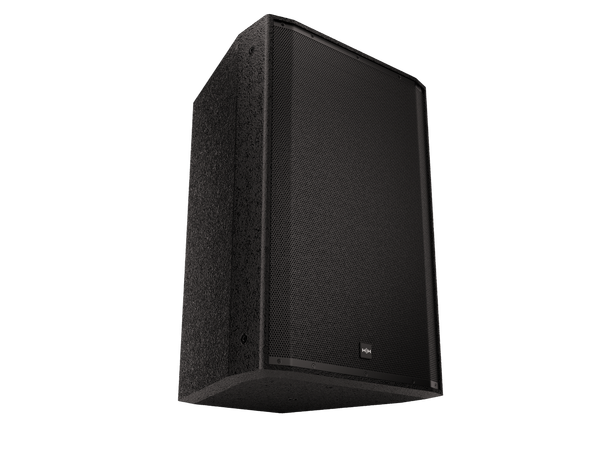

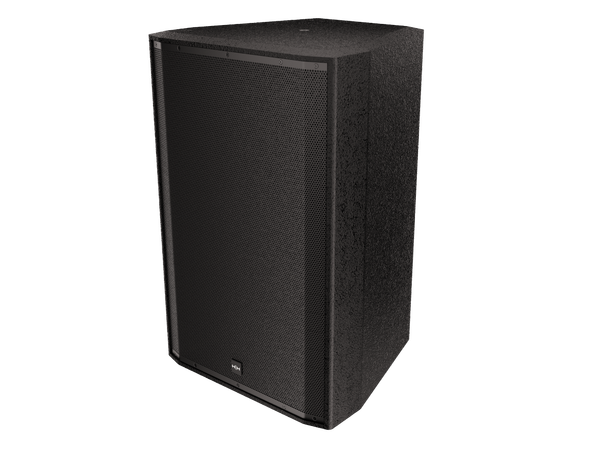

The TNi-W15Pro is a high-power, 2-way, full-range loudspeaker system that comprises a HH-designed 15-inch low-frequency driver with a 3-inch voice coil alongside a 1.75-inch Celestion CDX1-1742 high-frequency compression driver.

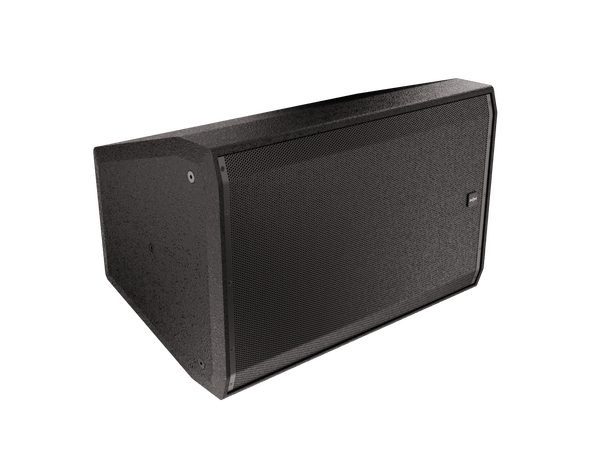

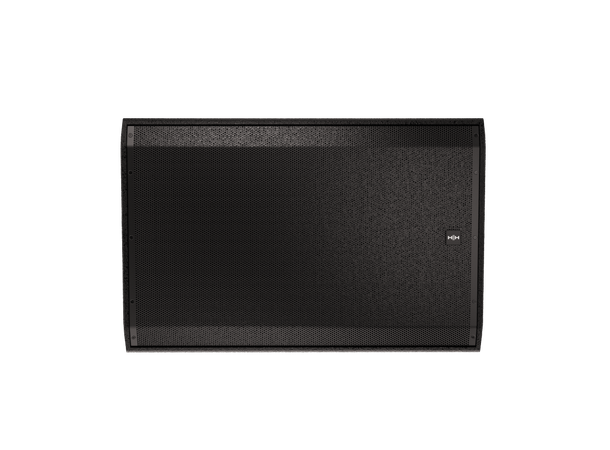

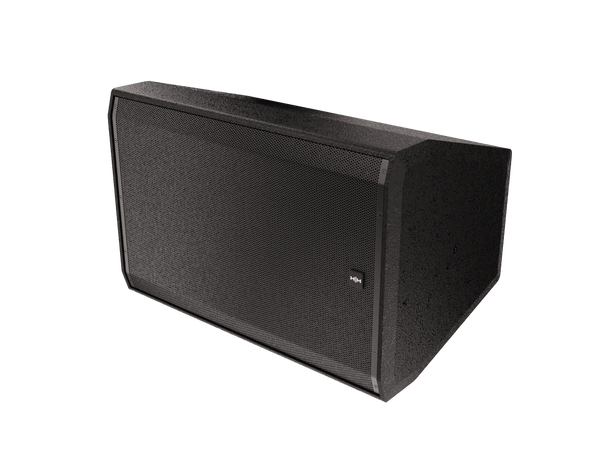

The TNi-W15PRO features a rotatable waveguide designed in collaboration with Celestion, which provides a 90°(H) x 60°(V) dispersion angle and enables the unit to be installed in either a vertical or horizontal orientation.

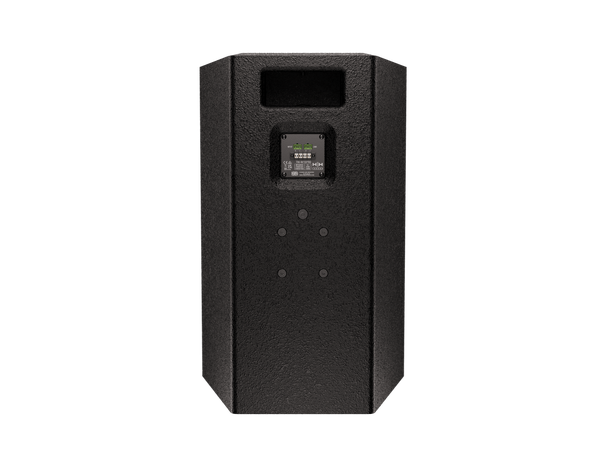

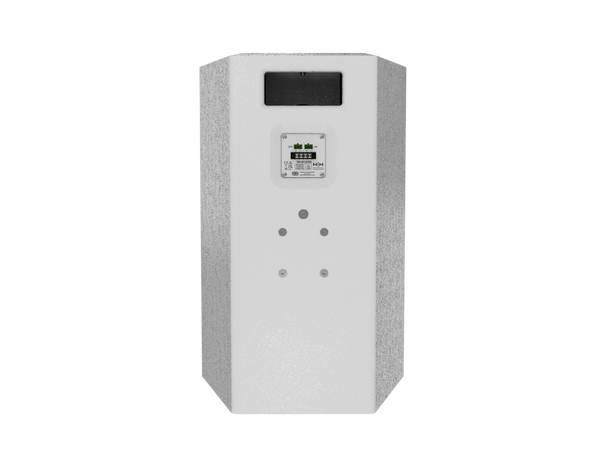

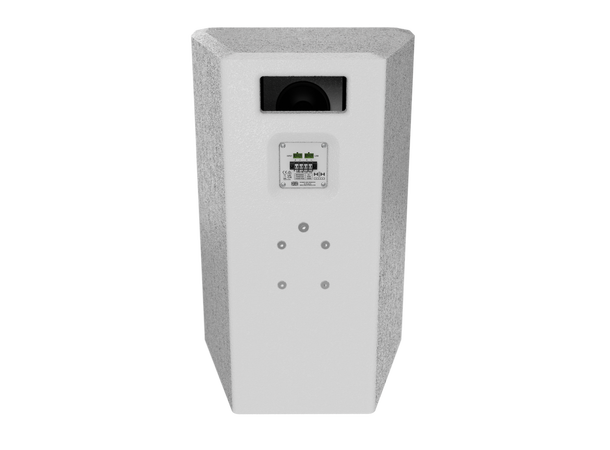

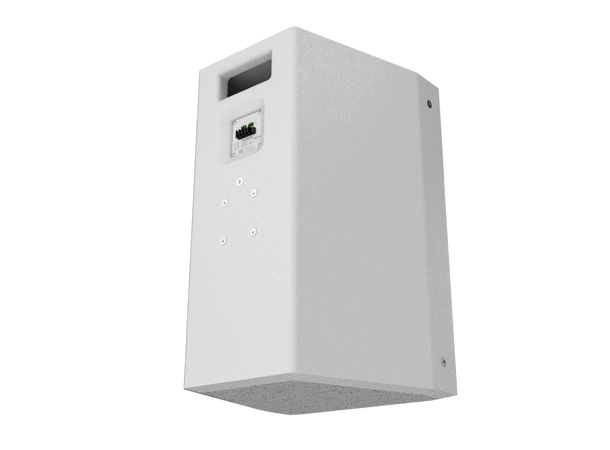

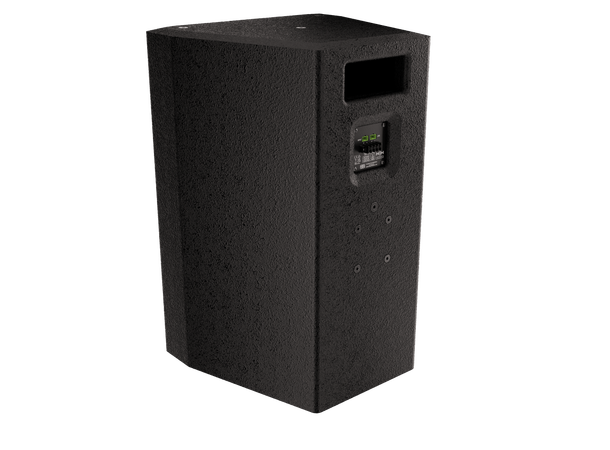

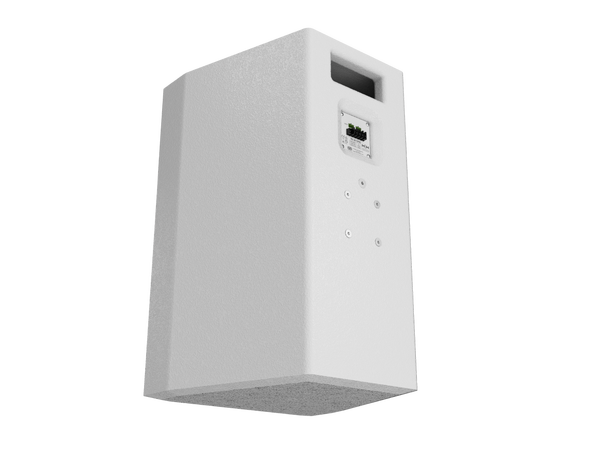

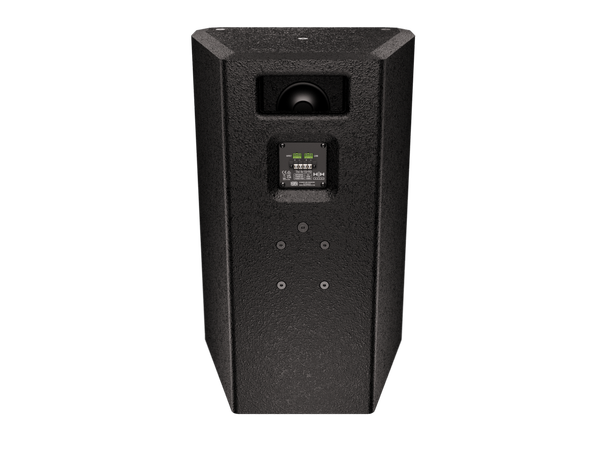

Mounting options include 4 x M8 mounting points for using the optional TNi-BRK30 multi-angle wall bracket as well as 7 x M10 Penn-Elcom fly points. The recessed rear panel offers flexible input connections via either Euroblock or M4 barrier strip.

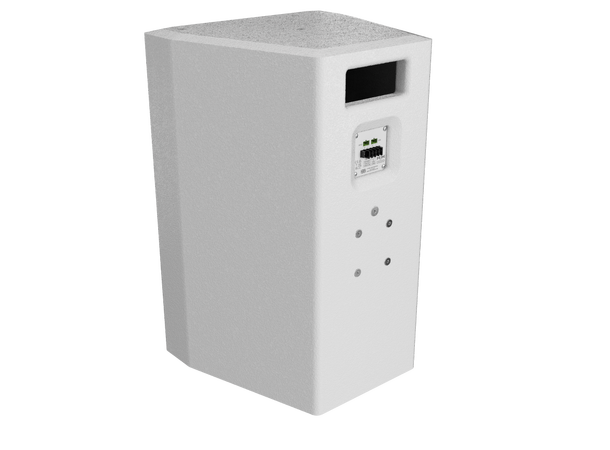

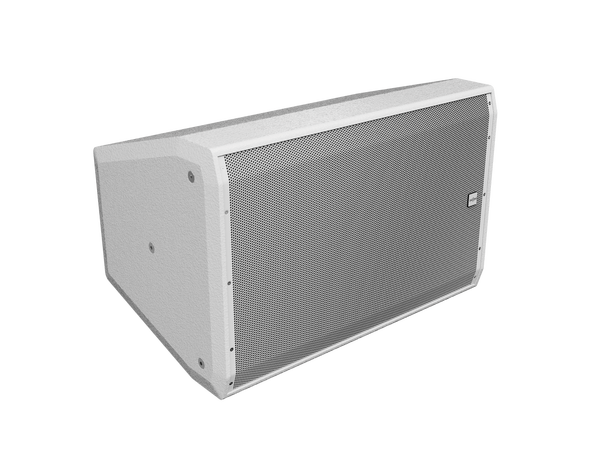

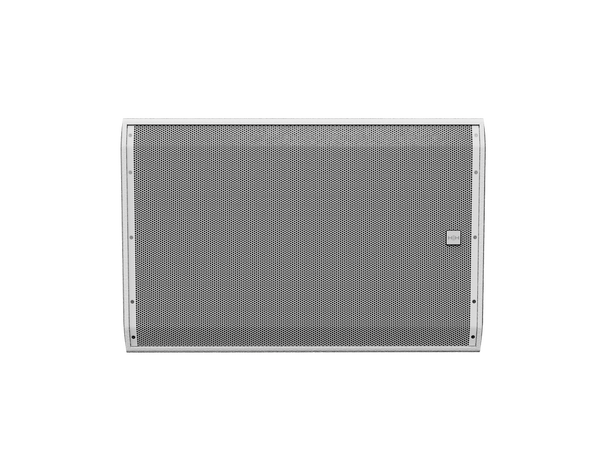

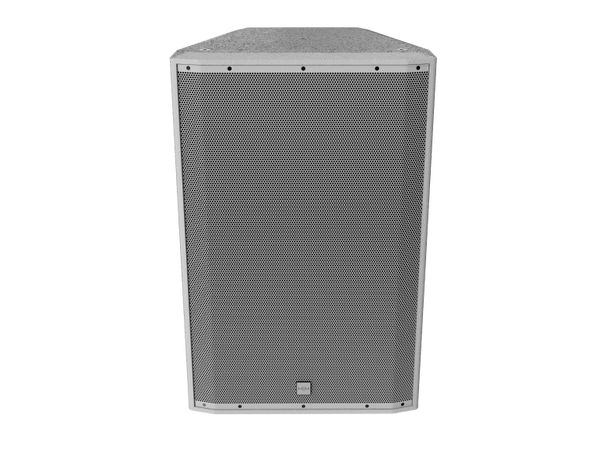

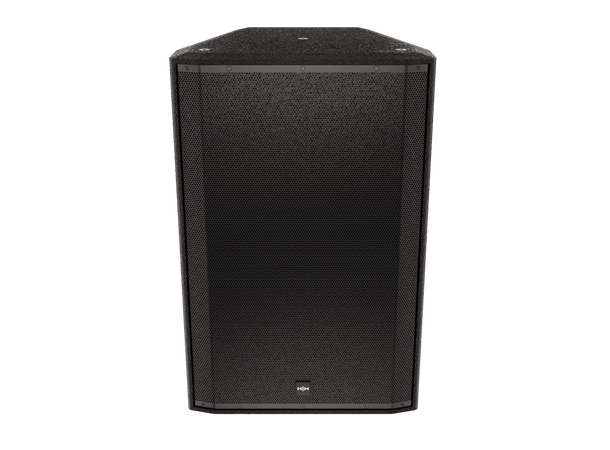

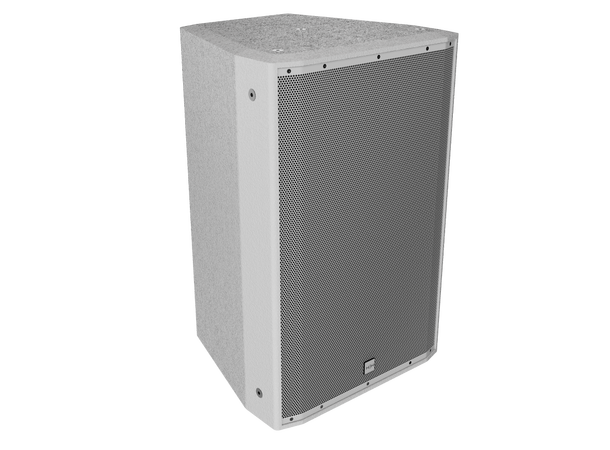

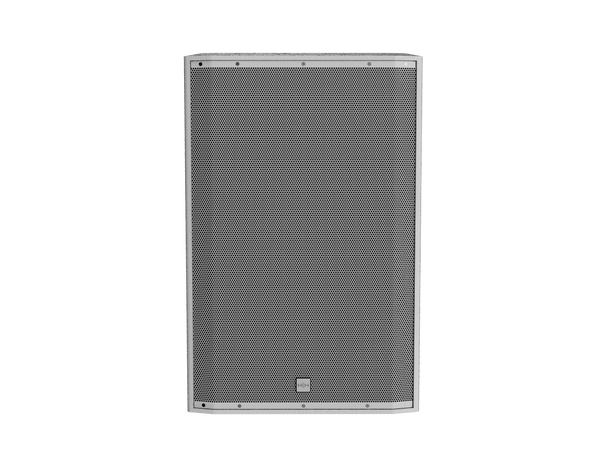

The robust enclosure is composed of 15mm plywood coated with a hard-wearing spatter finish plus a powder-coated steel grille with acoustic foam backing. Available in black or white.
| System Type | 15-inch 2 way Passive Speaker, Bass Reflex |
| LF Driver | 15" Black 38080-8 HH Designed High Performance Driver, 3.0" Voice Coil
|
| HF Driver | 1.75" Celestion CDX1-1742 |
| Nominal System Impedance | 8 ohm |
| Power | 450W AES, 900W Continuous, 1800W Peak |
| Recommended Amplifer | HH M-Series M1500D or equivalent with 600-1200W @ 8 Ohms |
| Sensitivity (1W/1M) | 98 dB |
| Max SPL | 125 dB, 131 dB (Peak) (1m) |
| Frequency Response (-10) | 41 - 20kHz |
| Frequency Response (-3) | 51 - 18kHz |
| Input Link Connector | Euro Block
Connector and M4 Barrier Strip Terminal (7.62mm Pitch) |
| Horiz. Dispersion Angle 1000Hz | 90° |
| Vertical Dispersion Angle 1000Hz | 60° |
| Crossover Frequency | 2.0KHz |
| Main Construction Material | Robust all
wood construction (15mm plywood) |
| Finish | Hard
wearing spatter finish (White or Black option) |
| Grille | Powdercoated
steel with acoustic foam backing |
| Mounting Bracket | 4 x M8
mounting points for optional HH-BRK30 |
| Mounting Points | 7 x M10
Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom) |
| Unit Dimensions (Hwd) | 665 x 430 x 400mm |
| Unit Weight | 22,4Kg |
| Carton Dimensions (Hwd) | 805 x 560 x 530mm |
| Packed Weight | 26,5Kg |
