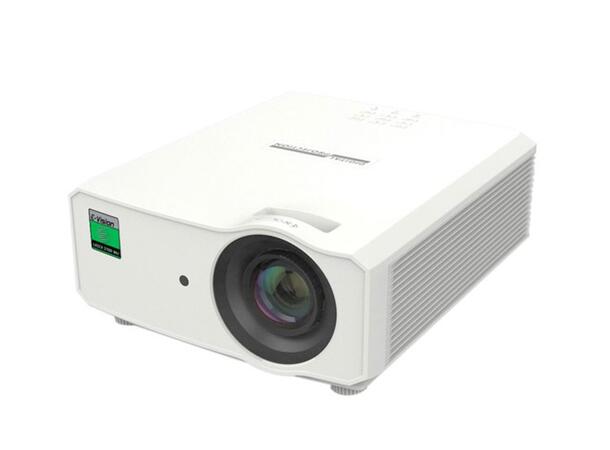

Digital Projection E-Vision Laser 6110 1920x1200, with 0.5:1 lens (fitted)

Digital Projection E-Vision Laser 6110

1920x1200, with 0.5:1 lens (fitted)

Varunummer: 132917
Alt. varunr: 123-844
BeskrivningTillbehörExtern Info
Beskrivning



Incredibly budget-friendly laser projector

Compact and powerful, the E-Vision 6110-WU delivers an impressive 6,100 lumens and weighs in at only 12Kg, and offers a very quiet operation noise of only 39 dBA. This single chip DLP Laser projector offers 20,000 hours of stable and near-maintenance free illumination.

The E-Vision 6110WU projector includes an ultra short-throw 0.5:1 fixed lens with a 0.6 offset, allowing it to be mounted well above the screen and out of the line of sight of viewers. This lens option makes it an impressively compact, entry-level imaging solution ideal for museums, lecture theatres, corporate boardrooms, digital signage and similar applications needing bright imagery at remarkably accessible price points.

With a multitude of connectivity options and a packed feature list of video and graphics processing, this projector also offers 10-bit colour display and a 4 Segment (RGBY) Colour wheel, ensuring excellent colour reproduction.



E-Vision 6110 WU (Preliminary)

6,100 ISO / 5,500 ANSI Lumens | Contrast Ratio: 2,200:1 Native, 20,000:1 Dynamic, 500,000:1 (Advanced Black) | Part Number: 123-844


Key Specifications:

Colour System:Laser Phosphor
Display Type:1 x 0.67" DarkChip™ DMD™
DMD Specification:1920 x 1200 pixels native resolution.
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:16x10
Fill Factor
Key Features:
Video & Graphics Processing
  • HDMI 1.4a mandatory compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats.
  • Synchronisation of active glasses or polarising switcher.
  • DICOM simulation mode
Geometry Correction
  • Vertical & Horizontal Keystone correction
  • Four Corner adjustment
  • Selectable aspect ratios: Fill, 4:3, 16:9, Letter Box, Native, 2.35:1
  • Digital Zoom +10 / -10
HDBaseT Interface
  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows the projector to be placed up to 100m from the source with low cost cabling.
  • HDBaseT® Includes Audio, Ethernet 100BaseT and RS232/IR control.
Colour Processing
  • Phosphor wheel: 3 Segment GBY 2 x 7200rpm
  • Colour wheel: 4 Segment RGBW 2 x 7200rpm
  • 10-bit colour processing (30-bits per pixel)
  • Powerful seven point colour correction for accurate colour matching.
Source Compatibility
  • Graphics standards up to 1920 x 1200 resolution at 60Hz
Inputs/Outputs
Video & Computer
TypeConnectorQty
HDMI 1.4a
HDBaseT-(LAN/HDBaseT)
VGA / Analog RGB
VGA Monitor out
Composite Video

Microphone In
Audio L/R In
Audio L/R In
Audio L/R Out
HDMI
8P8C "RJ45"
D-Sub
D-Sub
RCA

3.5mm Jack
3.5mm Jack
1xRCA pair
3.5mm Jack
3


1
1
1
1

1
1
1
1
.
Communication & Control
TypeConnectorQty
3D Sync Out
LAN
HDBaseT with Ethernet \ RS232 \IR control
Serial RS-232C (In/Out)
Service USB
USB Power out 5V/1.5A
3-pin DIN
8P8C "RJ45"
8P8C "RJ45"
9-pin D-Sub
USB Type B
USB Type A
1
1
1
1
1
1
3D Formats SupportedFrame Packing
Frame Sequential
Side By Side (half)
Top and Bottom
HDTV Formats SupportedSDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L)
Computer CompatibilityVGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
Bandwidth
Remote ControlIR remote control
Automation ControlLAN
RS-232
Alert Mail for Projector
LAN Control-Crestron® Roomview™-Connected
LAN Control-Crestron® eControl
LAN control - Extron®
LAN Control-PJ Link compatible
LAN Control-AMX® SSDP
LAN to RS232 (RS232 by Telnet)
Concurrence Control for RS232/LAN
PJ Link (Class 1)
Colour TemperatureWarm / Normal / Cold
Operation
illumination TypeLaser Light Source
Typical illumination Life20,000 hours
Lenses
LensPart No.Optimised Focus Range*Lens Shift (Frame)
0.5:1 (fixed)N/A0.76m - 1.35m (optical range) 0.60m - 3.5m (Mechanical range)Vert: Fixed Offset 0.6 (U) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens MountManual focus
Mechanical MountingFront/Rear
Front/Rear Ceiling
Two adjustable front feet, 10° (43mm)
Ceiling Mount compatible chassis with 7 off M4 mounting holes
Kensington® Security Slot
OrientationTable Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes
Power Requirements100-240VAC 50/60Hz single phase
Power Consumption515W @ 230VAC (100% Normal mode) Maximum 530W @ 100VAC (100% Normal mode) Maximum
Thermal Dissipation1757 BTU/Hour @ 230VAC (100% Normal mode) 1808 BTU/Hour @ 100VAC (100% Normal mode)
Fan NoiseNormal Mode Typ: 39 dBA
Operating/Storage Temperature:Operating: 0° to 40°C (32F to 104F)
Storage: -20° to 60°C (-4F to 140F)
Operating Humidity10 to 85% non-condensing
Weight12 kg / 26.45 lbs
DimensionsL: 43.71 cm W: 36.0 cm H: 17.83 cm
L: 17.2 in W: 14.17 in H: 7.02 in
Safety & EMC RegulationsUL / cUL (USA/Canada), CB, CCC (China), FCC Class B (USA), FDA, CE (European Economic Area), RCM (Australia), Others TBD
Accessories
AccessoryPart No.

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.

Downloads

PDF CAD Drawings

AUTOCAD Drawings

STEP / IGS Drawings
