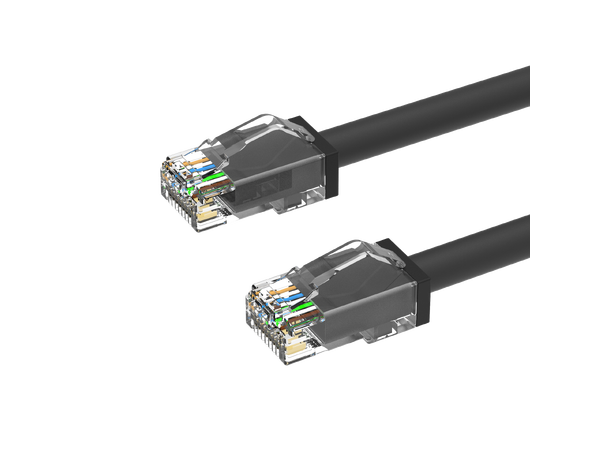

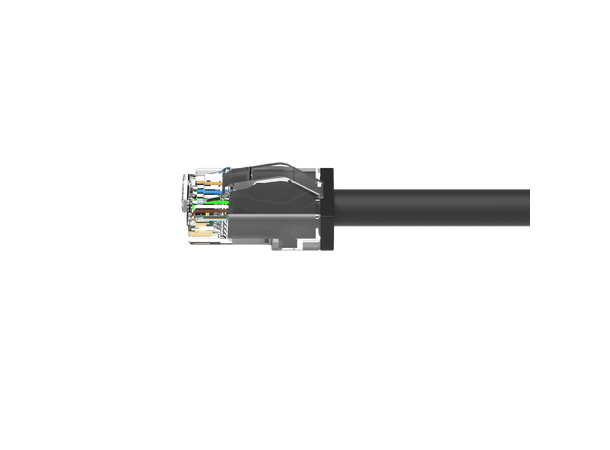

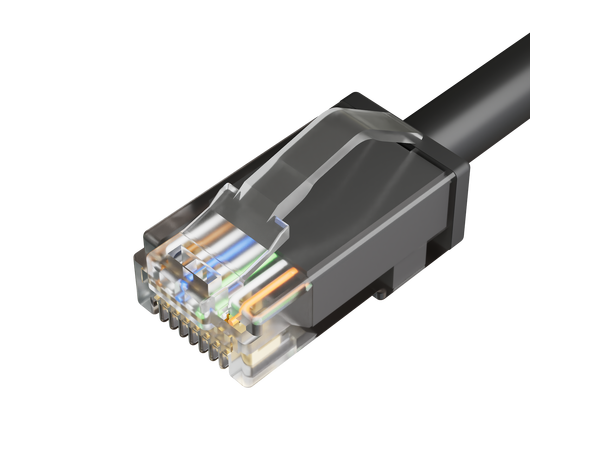

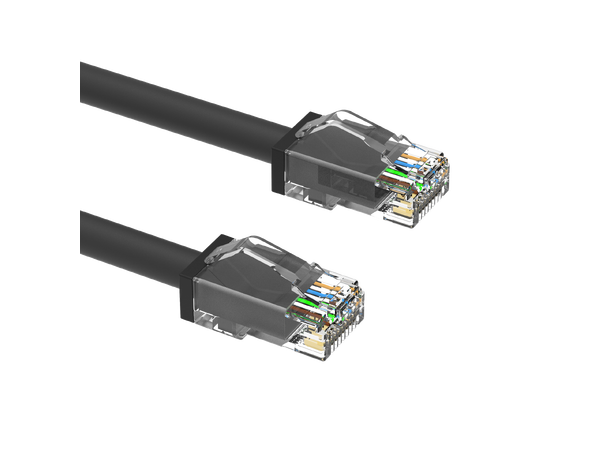

LinkIT Outdoor Patch U/UTP Cat6a 70m
AWG24 | PUR | OD 6mm | Black
The LinkIT Outdoor Cat6a U/UTP patch cable is designed to meet industrial standards and offers high performance with a range of technical specifications. The cable is made of pure copper with an AWG 24/7 structure, providing a conductor diameter of 0.20 mm. It features 50 µ gold-plated connectors and has an outer diameter of 6 mm. The cable’s protection includes a halogen-free and flame-retardant PUR sheath, ensuring long-lasting durability. The LinkIT cable is tested with DSX Fluke Channel to guarantee quality. It has an ultra-short molded boot and tangle-free latch plugs that prevent snags and provide easy release. The cable is designed to operate effectively within a temperature range of -40°C to +80°C.
Designed to meet industrial standards and offers high performance
- Ultra short molding boot
- 50µ gold plated connectors
- Halogen free and flame retardent PUR sheath
- DSX Fluke Channel tested
- Tangle free
Main Specifications
| Brand | LinkIT |
|---|
| Color | Black |
|---|
| Length (m) | 70 |
|---|
| Category | Cat.6a |
|---|
| Connector type 1 | RJ-45 male (8P8C) |
|---|
| Connector type 2 | RJ-45 M (8P8C) |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | U/UTP – unshielded/unshielded twisted pairs |
|---|
| Conductor design | Stranded |
|---|
Extended Specifications
| AWG wire size | 24 |
|---|
| Transmission speed | 10Gbps |
|---|
| Frequency (Mhz) | 500 |
|---|
| Jacket material | PUR |
|---|
| Operating Temperature | -40°C – 80°C |
|---|
| Cable Diameter (mm) | 6 |
|---|
| Halogenfree | Yes |
|---|
| Core color 1 | Orange |
|---|
| Core color 2 | Blue |
|---|
| Core color 3 | Green |
|---|
| Core Color 4 | Brown |
|---|
| Connector contact plating | 50 µin gold plated |
|---|
| EAN | 7072262020273 |
|---|
| Certifications | CE, RoHS |
|---|
