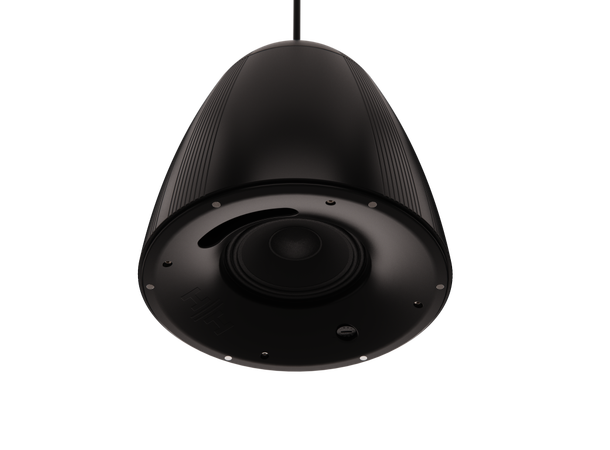

HH Aptur Pendant Speaker

The APT-P6 Pendant Speaker brings decades of British design and engineering expertise to your audio installations. It features a high-performance 6.5-inch Celestion coaxial driver, combining a 1.5-inch LF voice coil and a 1-inch HF voice coil. This design ensures crisp, clear, and balanced sound reproduction across a wide coverage area. The custom horn flare profile further enhances audio clarity, making the APT-P6 a versatile choice for diverse environments.

With a sensitivity of 90dB (1W/1M) and a 120W AES power rating, the APT-P6 delivers a maximum SPL of 110dB and a frequency response of 70Hz to 20kHz. This makes it an excellent choice for environments requiring high-quality audio, and when paired with the APT-W8S surface-mount subwoofer, it extends low-frequency performance for a fuller sound.

The APT-P6 also features a built-in multi-tap transformer, allowing for both low-impedance (Lo-Z) and 100V/70V line applications. The adjustable transformer can be easily modified via a rotary switch, conveniently hidden beneath the magnetic edge-to-edge grille.

Key Features:

• Celestion 6.5-inch coaxial driver with a 1.5-inch LF voice coil and 1-inch HF voice coil for clear, detailed audio.
• Custom horn flare designed in collaboration with Celestion for enhanced audio clarity and uniform sound distribution.
• Multi-tap transformer for use in Lo-Z and 100V/70V line applications, easily adjusted via a rotary switch.
• Sleek, tapered profile available in black or white, perfect for high-ceiling installations or spaces with architectural challenges.
• Magnetic edge-to-edge grille with removable HH logo for seamless integration into any environment.
• Durable rear dust cover to protect connectors while maintaining a clean aesthetic.
• Mounting versatility with optional wall-mount bracket and rear steel mounting point for secure suspension.

Applications:

• Restaurants and bars
• Corporate and retail spaces
• Education environments
• Large venues and high-ceiling settings

Specifications:

• System Type: 2-Way Coaxial Pendant Loudspeaker
• Driver: 6.5-inch Celestion Coaxial Driver (1.5-inch LF VC, 1-inch HF VC)
• Power Options (100V): 40W, 20W, 10W
• Nominal Impedance: 8 Ohms
• Power Rating: 120W AES, 240W Continuous, 480W Peak
• Recommended Amplifier: MZ-140D, MZ-140Q, MZ-280Q
• Sensitivity: 90dB (1W/1M)
• Max SPL: 110dB SPL (1m), 116dB SPL (Peak)
• Frequency Response: 70Hz - 20kHz
• Input/Link Connector: 4-pin Euroblock (+/-)
• Coverage Angle: 120°
• Enclosure Material: ABS
• Finish: Black or White ABS, Powder-Coated Steel Back Can
• Grille: Fine Mesh Perforated Steel with Powder-Coated Finish
• Dimensions:
  • Outer Diameter: 308mm
  • Max Depth: 305mm
  • Cutout Diameter: 273mm
• Mounting Options: Optional wall-mount bracket and integrated eyelet for suspended mounting.

Optional Accessories:

• APT-TB6: Tile bridge for APT-P6
• APT-CG6-BK: Black Grille for APT-P6 (for discreet installations)
