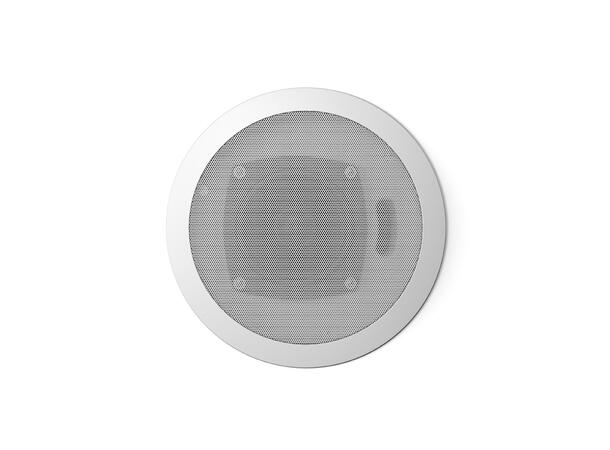

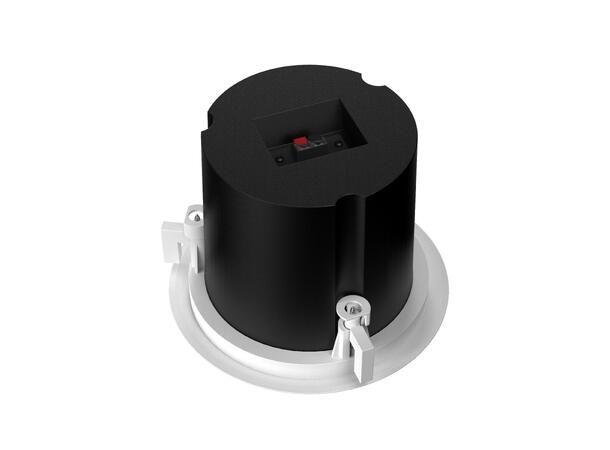

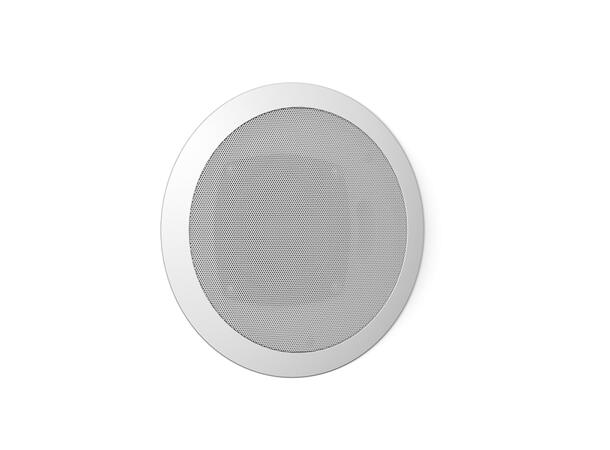

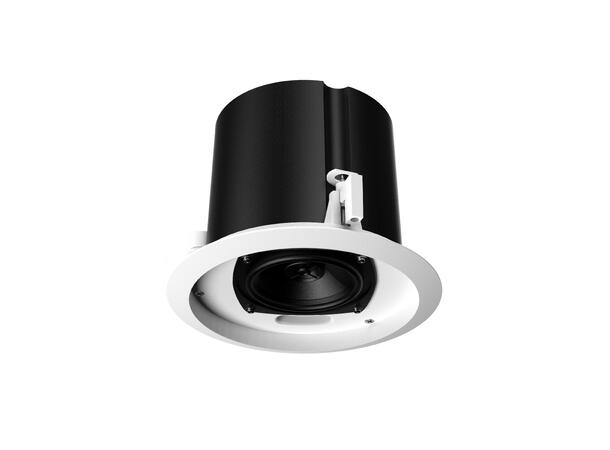

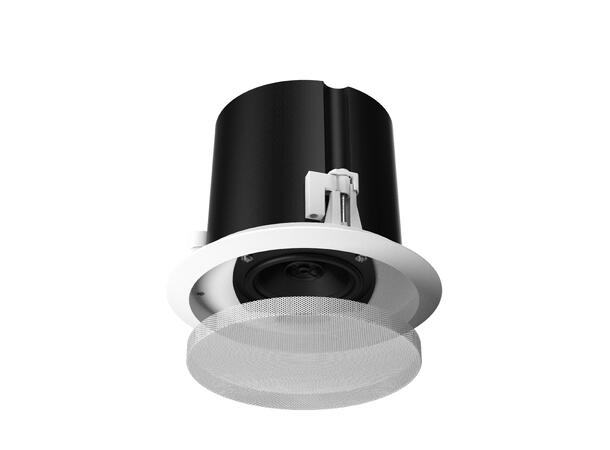

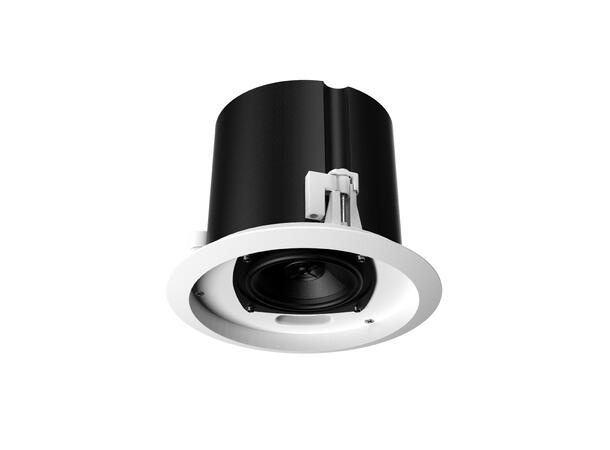

HH Ceiling speaker TESSEN TNi-C4
4+1" 30W@100V 45W@ 8 Ohm White
The Tessen TNi-C4 delivers premium audio reinforcement. Designed with the installer in mind, The TNi-C4 – 4 inch coaxial ceiling speaker - features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed. With connectivity for 70V/100V and 8 ohm low impedance lines, The TNi-C4 delivers a highly flexible solution. The spring connection terminals ensure cables are secure once fitted.
| 100V Power Options |
30W, 15W, 6W |
| 70V Power Options |
15W, 7.5W,
3W |
| Frequency Response (-10) |
85Hz -
20KHz |
| Frequency Response (-3) |
100Hz -
16KHz |
| LF Driver |
4 Inch,
Paper Cone |
| HF Driver |
1.5 inch
Neodymium |
| Low Nominal System Impedance |
8 OHM |
| Power |
45W AES,
180W Peak |
| Max SPL (1M) (Peak) |
111 dB |
| Sensitivity (1W/1M) |
88 DB SPL |
| Recommended Amplifer |
80-160W @ 8
Ohms |
| Nominal Coverage |
130°
conical |
| Input Connector |
Push spring
connectors |
| Mounting Points |
3x Dog ear
brackets |
| Mounting Depth |
156mm |
| Installation Grip Range |
4 - 20mm |
| Cutout |
180mm, 7.1
Inches |
| Outside Diameter |
204mm, 8
Inches |
| Unit Weight |
1.4kg, 3.1
lbs |
| Main Construction Material |
ABS Plastic |
| Grille |
1.5mm
circular mesh steel |
| Finish |
White |
