HH Subwoofer Tessen TNA-2120SA Active
2x12" 3 ch amp 2400W 52-200Hz@ -10 134dB

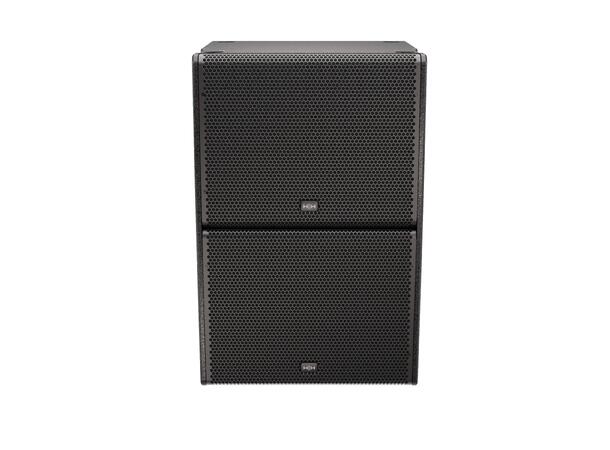

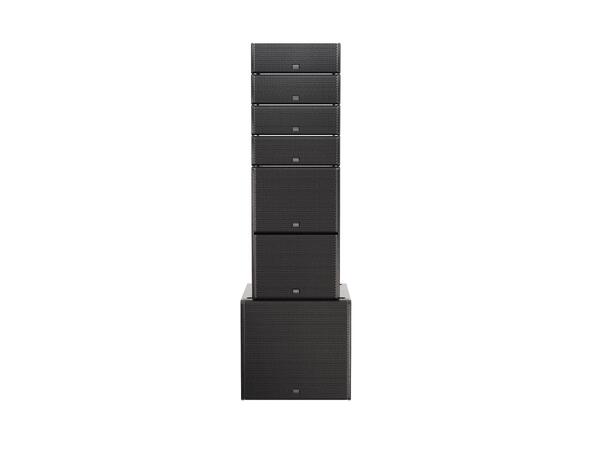

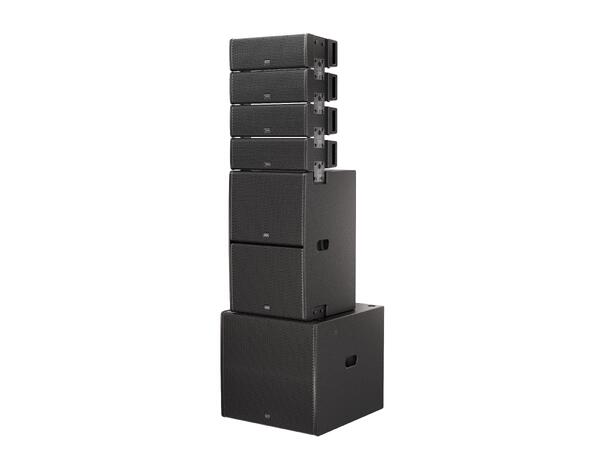

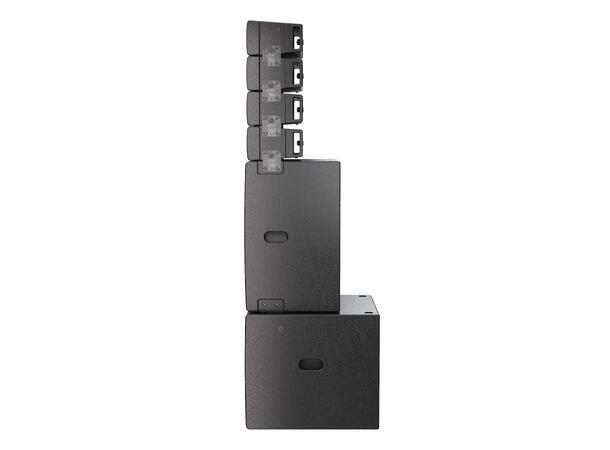

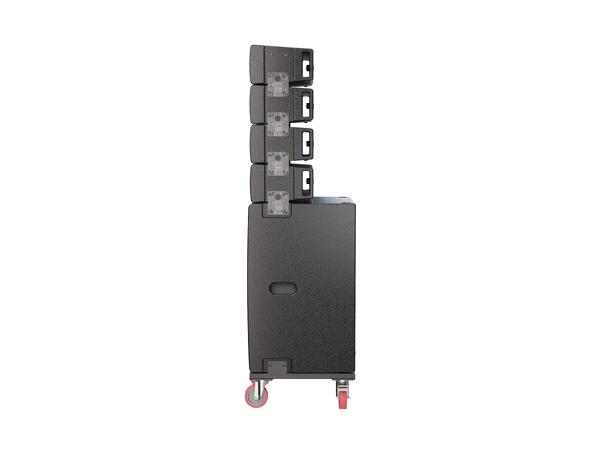

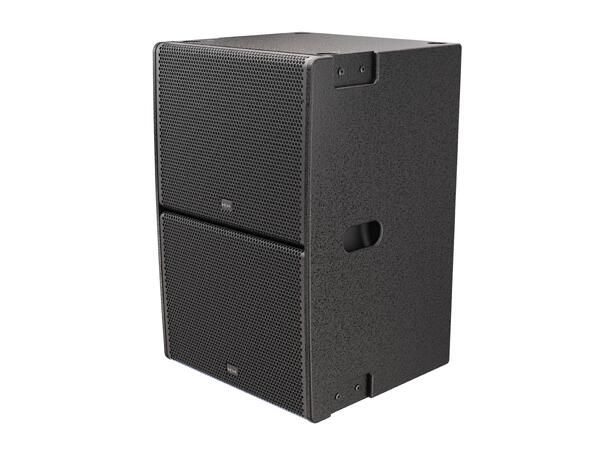

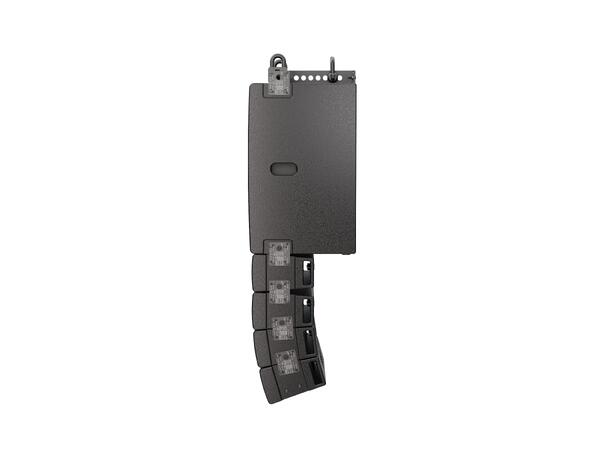

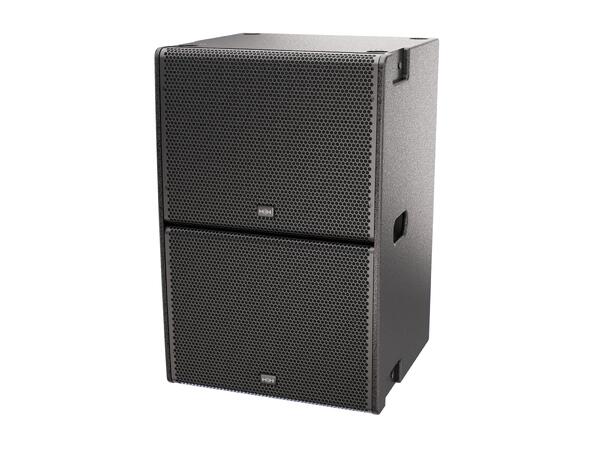

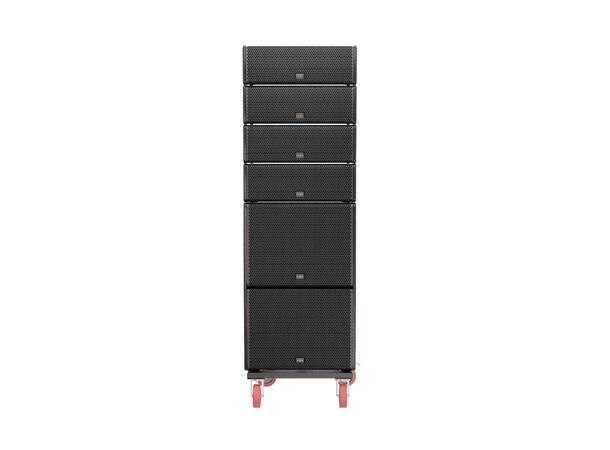

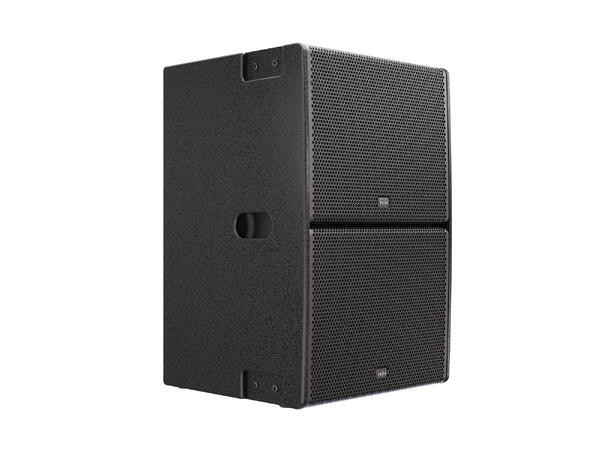

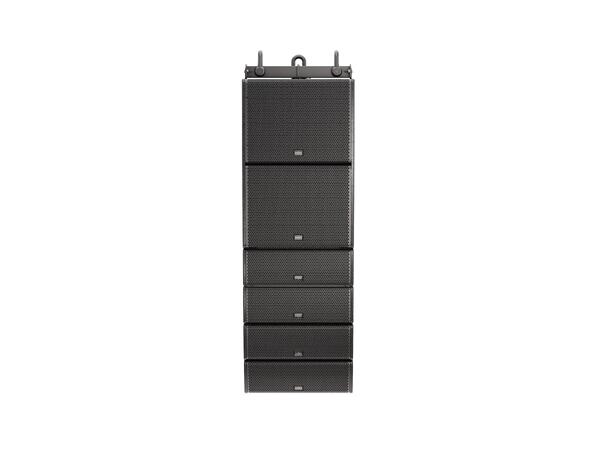

The TNA-2120SA is a multi-channel active subwoofer for powering a complete TNA line array system. The TNA-2120SA features two high power 12-inch low frequency woofers with exceptionally high output. The TNA-2120SA active subwoofer houses three channels of high performance amplification and cutting edge built in DSP presets. As a modular system, the TNA-2120SA is capable of powering up to 6 x TNA-2051 line array satellite cabinets. With Integrated rigging hardware, and optional suspension bracket and dolly board, the TNA-2120SA can be installed quickly and easily. The TNA-2120SA offers a max SPL of 137dB and offers a frequency response as low as 35Hz. When combined upto six TNA-2051's, the TNA-2120SA offers an ideal venue installation or point source solution without the extra expense of rack amplifiers and processors. Ideal for venues, schools, sports, gyms, hotels and more.
| Frequency
Response (-10) |
52Hz - 200Hz |
| Frequency Response (-3) |
52Hz
- 150Hz * Tuned with internal DSP Presets |

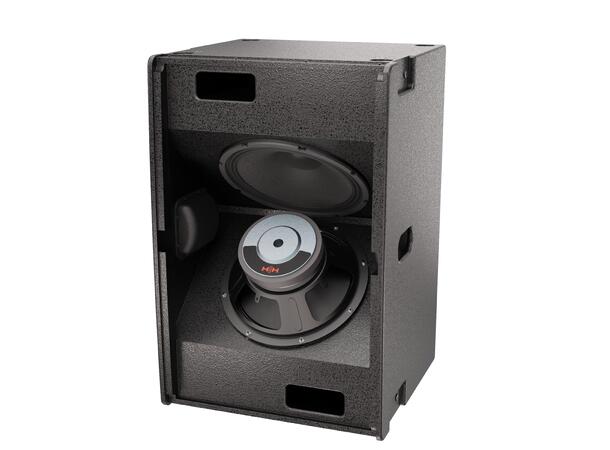

| LF Driver |
2
x 12-inch HH designed high performance driver |
| Max SPL |
134dB
continuous, 137dB Peak |
| Amplifier |
System
Amplifier Power Rating: 4800W Peak, 2400W Continuous, 1200W RMS |
| Subwoofer Amplifier Power Rating: 2400W Peak,
1200W Continuous, 600W RMS |
| Satellite Amplifier Power Rating: Two Channels
of 1200W Peak, 600W Continuous, 300W RMS |
| Input Connectiors |
Balanced
XLR Connector |

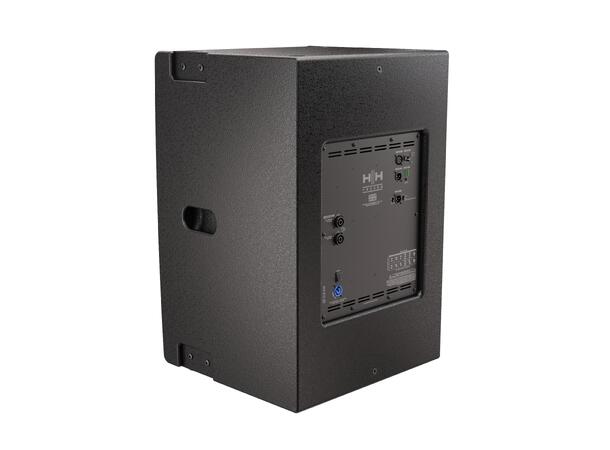

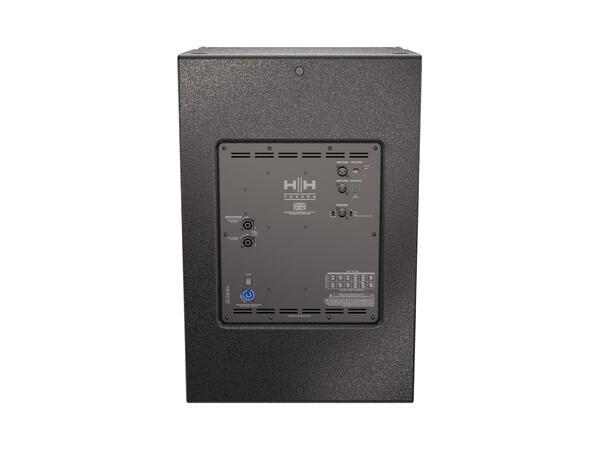

| Output Connectors |
1
x Balanced XLR Link Out, 1 x Balanced XLR Sub out with 2 way/3 way mode
switch and Ground Lift Switch. 2 x locking speakon connectors for external
TNA-2051 cabinets |
| Indicators |
Power,
Mute/Protect, Clip Indicator, Preset Mode |
| DSP |
56bit
DSP controlling Crossover, EQ, phase and time optimisation for array
cabinets. Six built in DSP presets for typical use cases |
| Protection |
Comprehensive
protection and clip free limiting + clip indicator |
| Controls |
Master
Volume, DPS Preset Switch |
| Input Impedance (Bal/Unbal) |
22K
Balanced, 10K unbalanced |
| Cabinet |
15mm
Plywood |
| Grille |
1.5mm
Thickness, Hexagonal mesh |
| Mounting Points |
8
x M8 fixings for included metal side brackets, and optional TNA-BRK1 flying
bracket assembly |
| Finish |
Painted
Black (White finish optional, subject to MOQ) |
| Accessories |

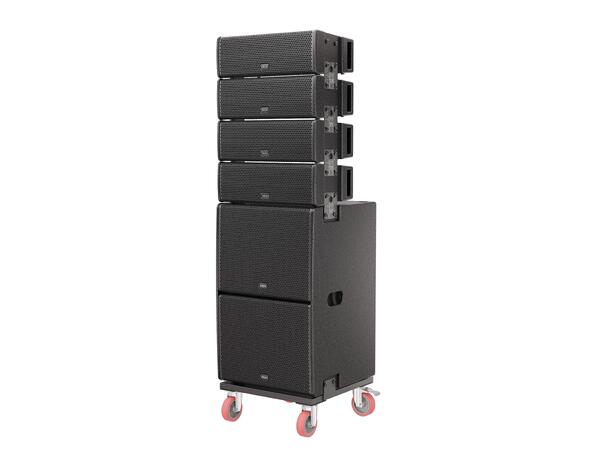

TNA-DF1
- Dolly frame |
| Mounting Bracket |
TNA-BRK1 |
| Unit Dimensions (Hwd) |
730
x 475 x 460mm, 28.7" x 18.7" x 18.1" |
| Unit Weight |
36.7Kg,
80.9 lbs |
| Carton Dimensions (Hwd) |
910
x 610 x 580mm, 35.8" x 24" x 22.8" , 0.322 M3 |
| Packed Weight |
42.8Kg,
94.4 lbs |
